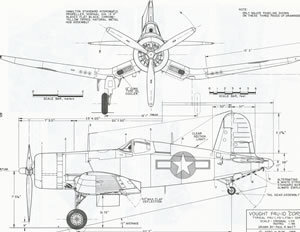

Chance Vought F4U-1D Corsair US Navy Fighter Drawing

3 Pages with 4 views (Total) of the Chance Vought F4U-1D Corsair US Navy Fighter Aircraft. This variant was introduced in April 1944. It had a new water injection engine that gave the aircraft up to 250 more horse power. There were over 12,000 Corsairs built across all variations. Also includes 2 bonus pages with pictures.

These sheets of drawings shown is in high resolution and in full colour so that nothing is lost when compared to the original plans. It is sized to fit onto A3 sheets of paper to be repinted from your home PC or at an outside plan printing bureau. We did not resize smaller because the drawings contain a lot of notes in a small type size and full resolution is needed for the sake of legibility. They will print larger or smaller as you require because there is plenty of resolution in the images but as previously noted care will have to be taken if printing smaller because the text size already quite small.
